Copeland 4DL3-1500-TSK

$5,500.00

I AM RETURNING THE OLD CORE

LIMITED SPACE?

LIFTGATE REQUIRED?

Quantity

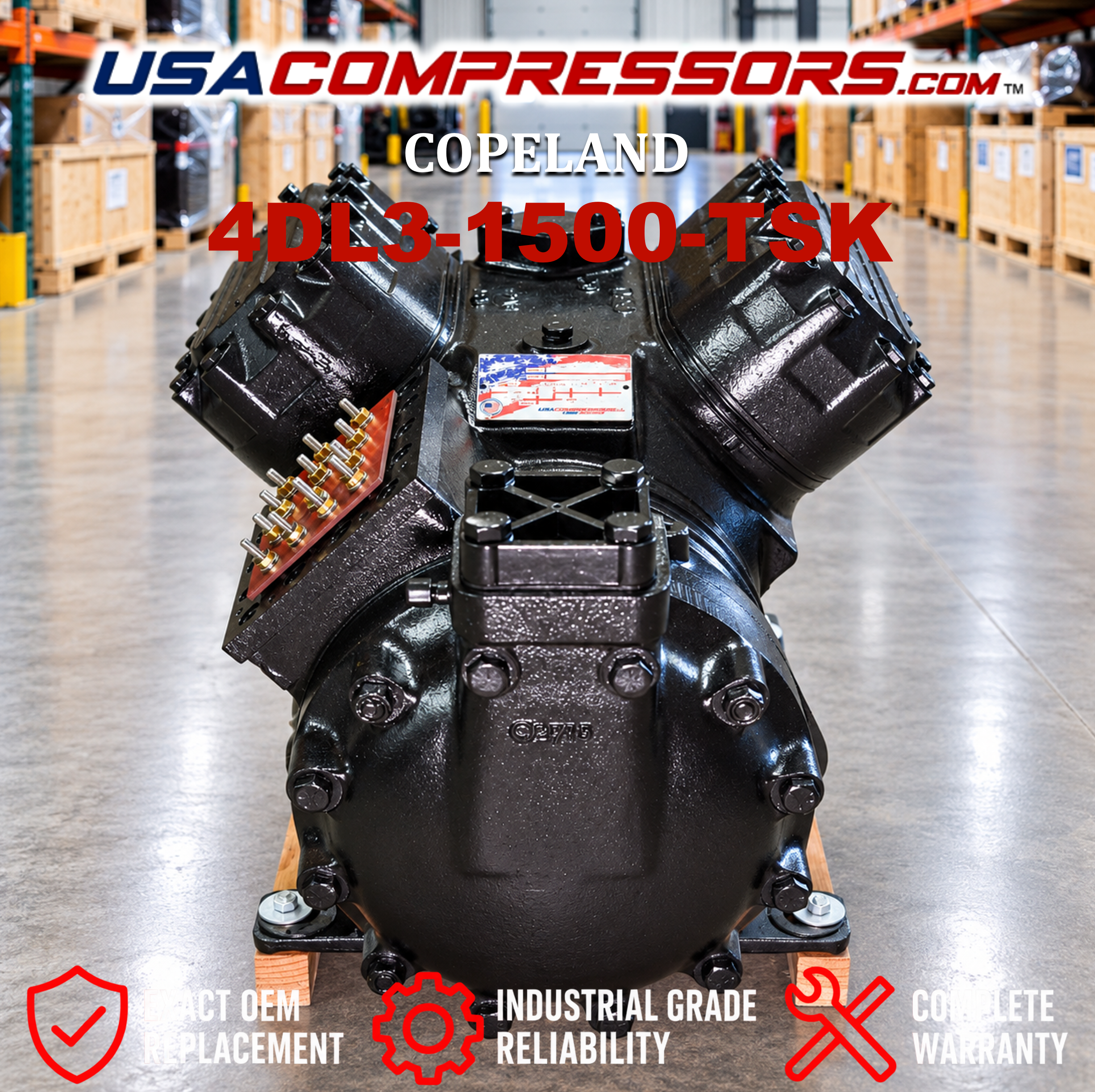

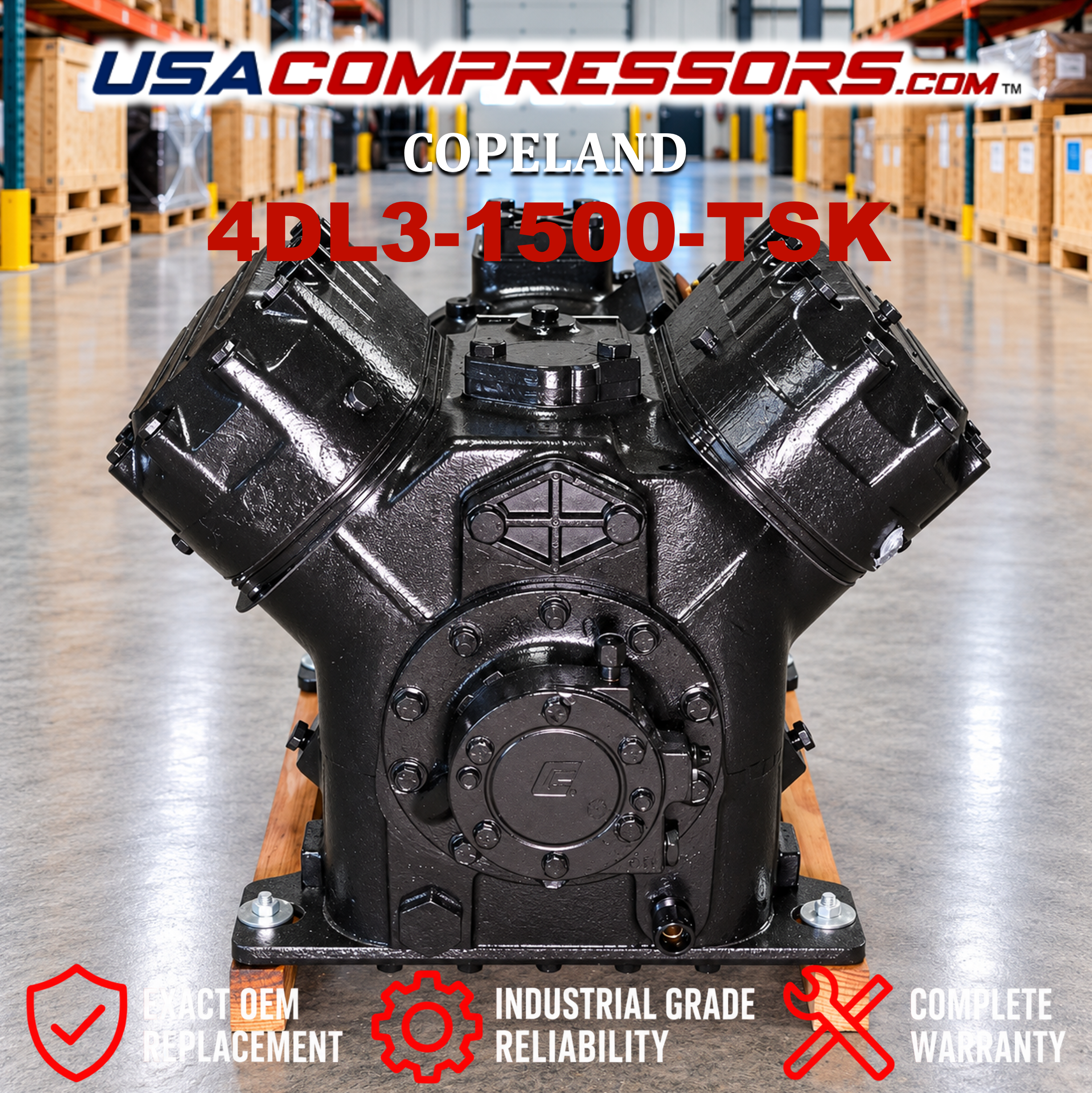

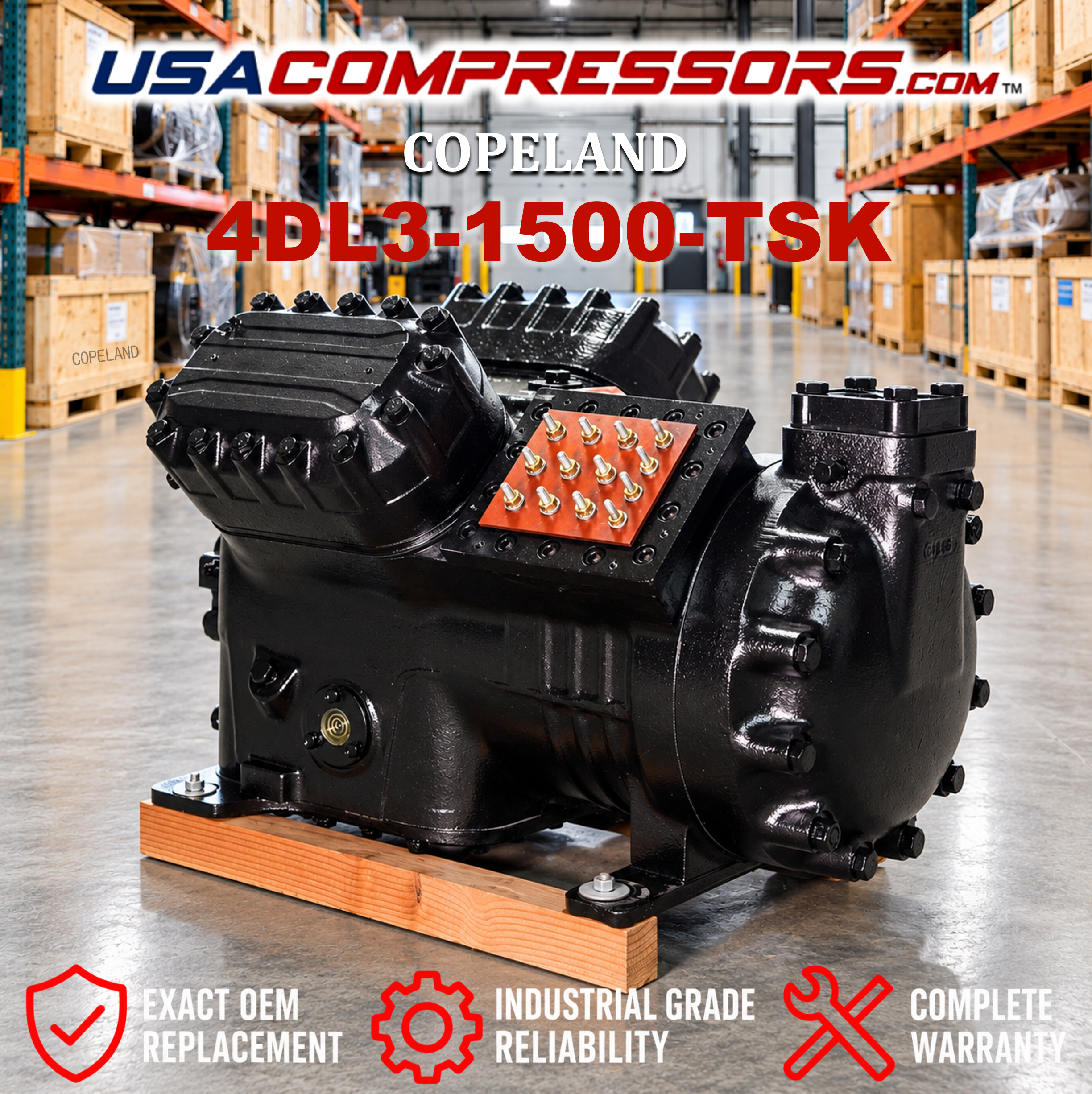

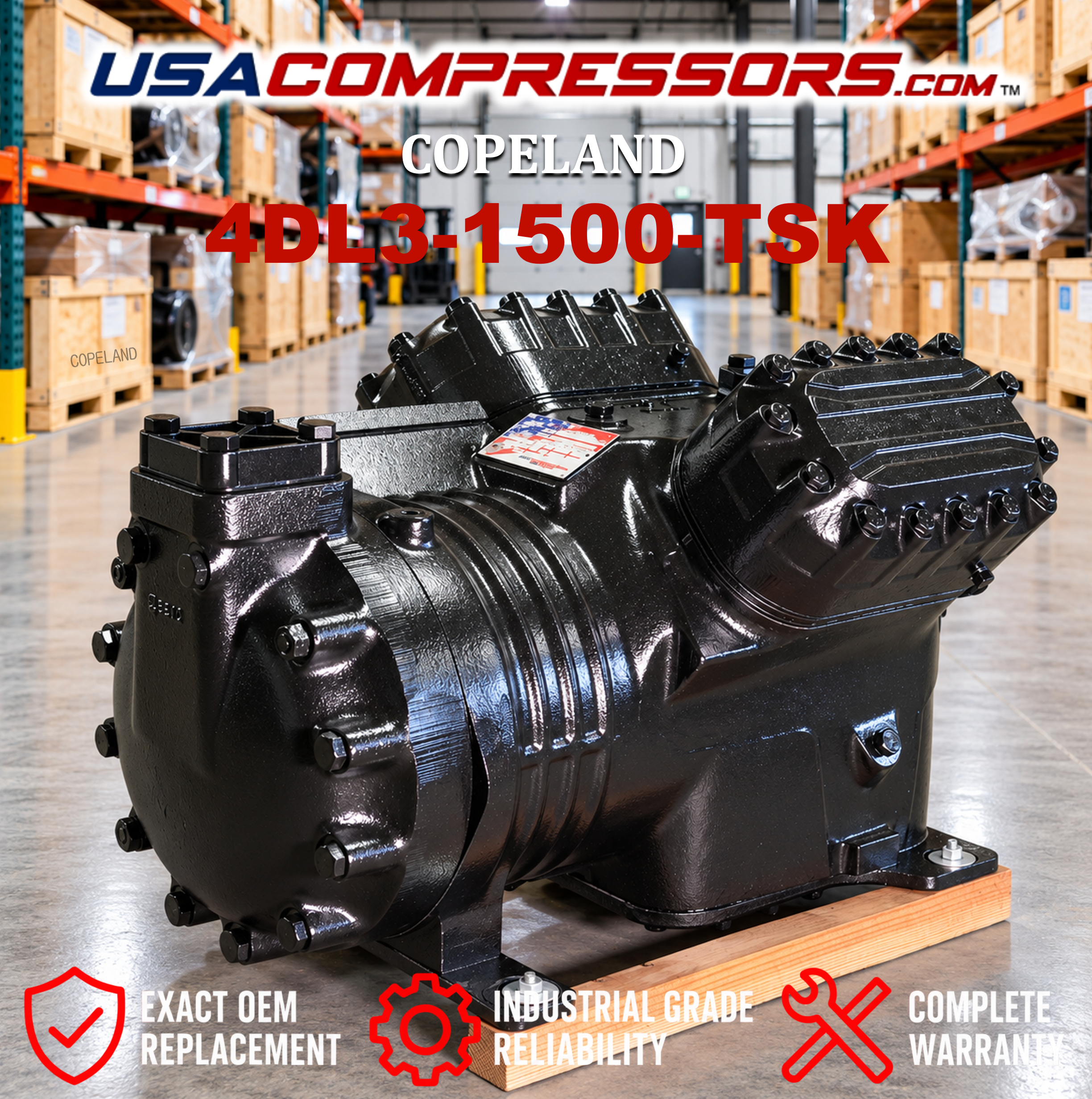

Copeland 4DL3-1500-TSK Remanufactured Compressor

Also known as: 4DL31500TSK | 4DL3 1500 TSK

*Approximately 3 to 5 business days for final preparation. May ship next day if ready.

Horsepower	15 HP
Cylinders	4 (Discus)
Displacement	50.3 CFM / 3,020 CFH
Motor Speed	1,750 RPM @ 60 Hz
Voltage	208–230V / 3 Phase / 60 Hz & 460V / 3 Phase / 60 Hz
Motor Code	TSK (3-Phase, Single Voltage or Part-Winding Start)
Refrigerants	R-22, R-404A, R-507, R-448A, R-449A, R-407A/C/F
Application	Low & Medium Temperature Refrigeration
Suction Connection	1-5/8" Sweat
Discharge Connection	1-1/8" Sweat
Oil Charge	135 fl oz (~4.2 qt / 4.0 L)
Oil Type	POE (HFCs/Low-GWP) or Mineral (R-22)
Bore / Stroke	2.500 in / 2.062 in
Nominal Capacity (R-22, Low Temp)	~52,300 BTU/hr
Power Input	~10.4 kW
RLA (208-230V / 460V)	52.6 A / 26.3 A
LRA (208-230V / 460V)	278.0 A / 139.0 A
Unit Weight	425 lbs (193 kg)
Ships (palletized)	~450 lbs (204 kg)

Remanufactured to OEM specifications.
Remanufactured with all new parts.
Remanufactured in the USA in our warehouse.
Complete 1 year warranty.

This compressor ships via LTL freight on a pallet. See these options above:

I Am Sending The Old Core Back — choose YES to return your old core unit for the exchange price (return freight is included); choose NO to keep your old unit at the standard price.
Limited Space? — choose YES if the delivery address has restricted access for a 53' tractor trailer (+$50).
Liftgate Required? — choose YES if you don't have a loading dock and need the pallet lowered to ground level (+$100).
*Crating — Crating available upon request with additional fees.

Give us a call or email us with your old compressor's nameplate info and we'll confirm the right match.

Call us now — we'll beat any price!
